PROJECT DESCRIPTION
SEAWATER REVERSE OSMOSIS SYSTEM - 400,000 GPD
Previous
Next
DRINKING WATER - MUNICIPALITY
This project was built to deliver treated water for needed communities (approx. 12,000) where the municipal water service is deficient.
For this project we delivered four (4) containerized seawater reverse osmosis systems, complete with pre-treatment, flush and post- treatment modules. Each system was installed and shipped in two (2) 40ft container.
Each SWRO had a single pass, single stage, fourteen (14) pressure vessel total, that contained ninety eight (98) thin-film composite elements.
The system produces 400,000 GPD or 277.0.0 GPM of product water at 45% recovery.
main features
- Inlet actuator valve
- 5 Micron cartridge filter
- 300 HP multistage centrifugal High Pressure Pump
- Energy Recovery Device (ERD) - Turbo charger
- Motor variable frequency driver (VFD)
- Low- and high-pressure protection
- FRP high rated pressure vessel with a seven (7) membrane array
- Clean in place and flush system integrated, 25HP SS multistage centrifugal pump and a 800gal polyethilene tank
- NEMA 12 enclosure
- PLC controller
- 15” HMI for operator interface
- Product and reject flowmeter
- Conductivity monitor
- Sample valves
ANCILLARY EQUIPMENT
- 25HP centrifugal feed pump

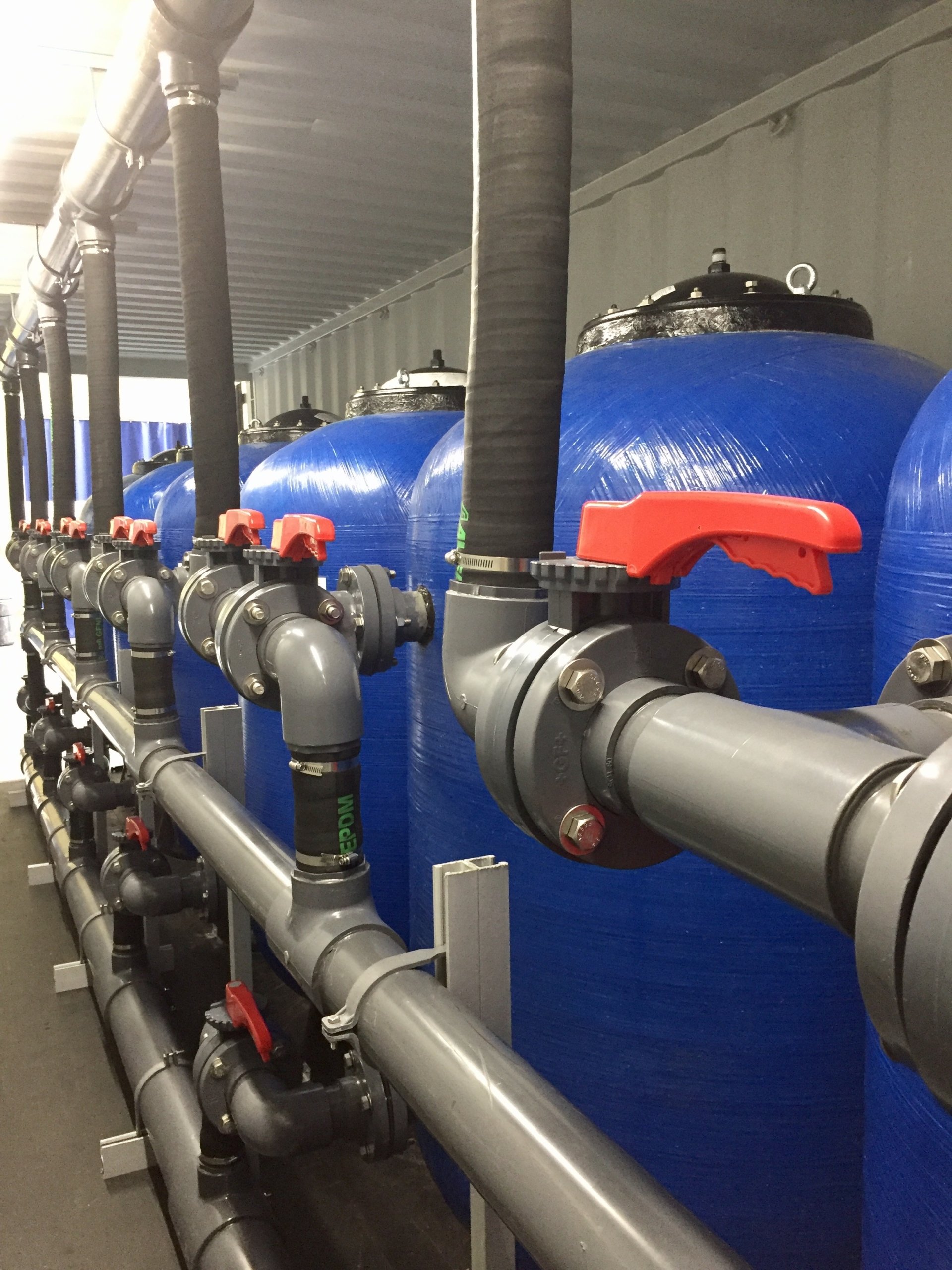

- Six (6) multimedia filters 68” diam. x 72” high (pre-treatment)
- Antiscalant injection system (pre-treatment)
PHYSICAL DATA & DIMENSIONS :
- Dimensions: 40' container
- Weight: 16,000 lbs (aprox)
