PROJECT DESCRIPTION SEA WATER REVERSE OSMOSIS SYSTEM - 100,000 GPD
Previous
Next
DRINKING WATER - MUNICIPALITY
This project was built to deliver treated water for needed communities (approx. 3,200 people) where the municipal water service is deficient.

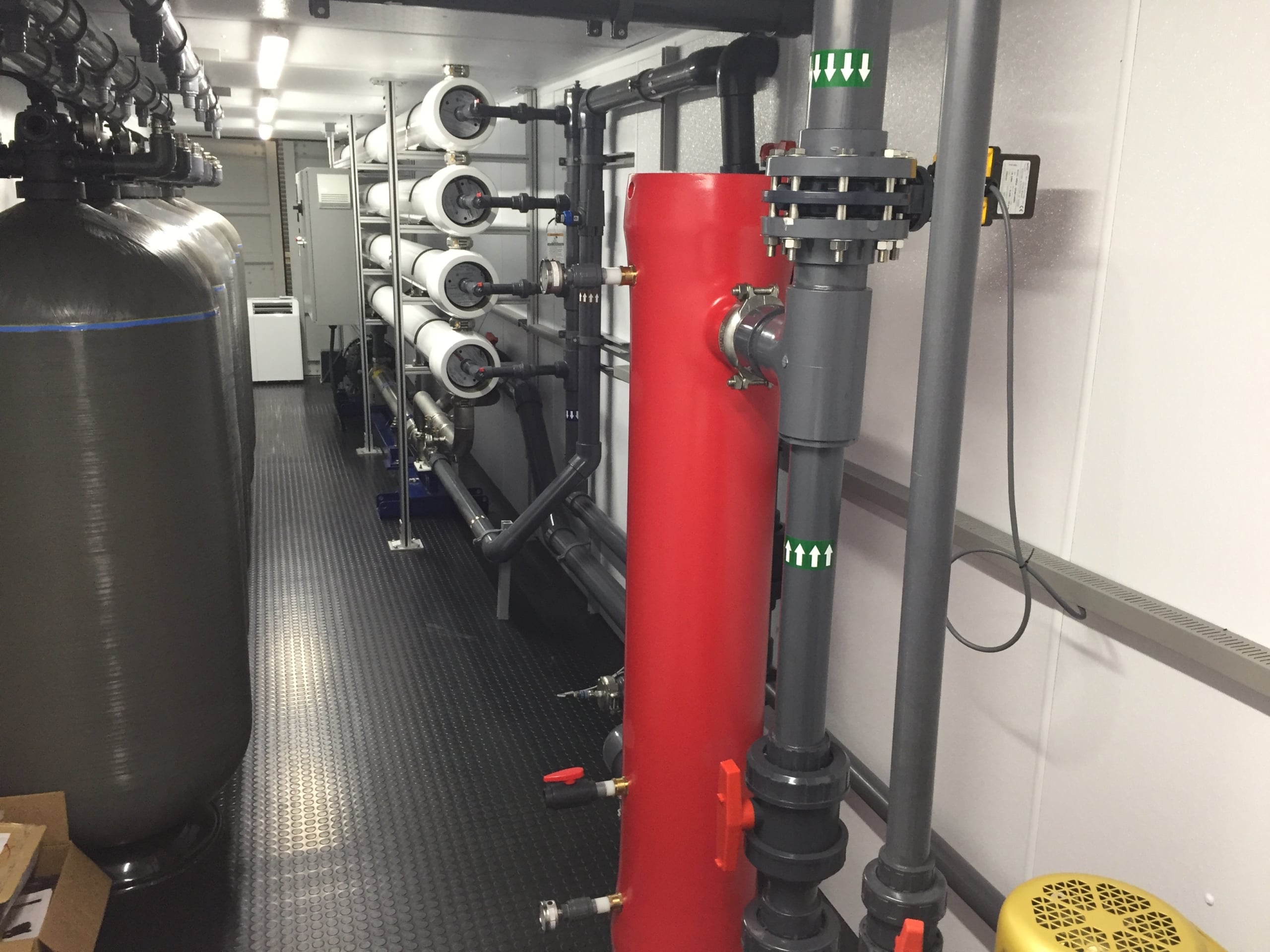

For this project we delivered two (4) containerized sea water reverse osmosis systems, complete with pre-treatment, flush and post- treatment modules.
Each SWRO had a single pass, single stage, four (4) pressure vessel total, that contained twenty four (24) thin-film composite elements.
The system produces 100,000 GPD or 69.5.0 GPM of product water at 45% recovery.
main features
- Inlet actuator valve
- 5 Micron cartridge filter
- 75 HP multistage centrifugal High Pressure Pump
- Energy Recover Device (ERD) - Turbo charger
- Motor variable frequency driver (VFD)
- Low- and high-pressure protection
- FRP high rated pressure vessel with a three (3) membrane array
- Clean in place and flush system integrated
- NEMA 12 enclosure
- PLC controller
- 15” HMI for operator interface
- Product and reject flowmeter
- Conductivity monitor
- Sample valves
ANCILLARY EQUIPMENT
- 7.5HP centrifugal feed pump
- 4 multimedia filters 48” diam. x 62” high (pre-treatment)
- Antiscalant injection system (pre-treatment)
PHYSICAL DATA & DIMENSIONS :
- Dimensions: 10' x 4' x 6'
- Weight: 1,050 lb.
