ARKQUA™ Containerized Reverse Osmosis (RO)
Systems for Efficient Water Treatment

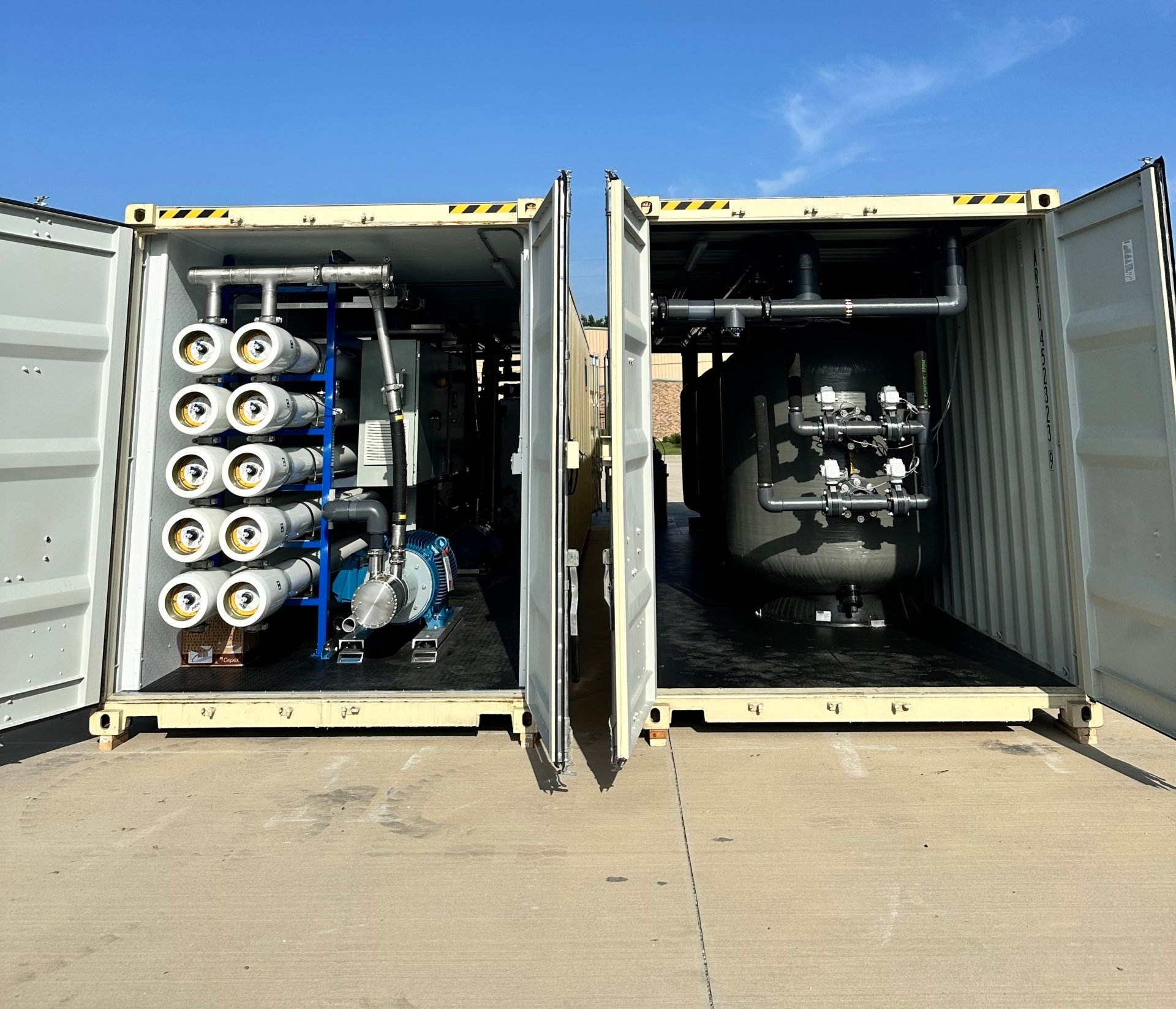

ADVANCED Equipment and Services is a Leader in Containerized Reverse Osmosis (RO) Systems. We build Desalination and Brackish Reverse Osmosis (RO) Systems mounted inside standard ISO containers (20′ & 40′ HQ). Facilitating transportation and deployment in an expedite manner. Our systems are ready to produce high-quality potable water within a day of delivery.
We build Truly containerized RO systems providing compact design and friendly maintenance access and operation. RO, CIP flushing and MMF are provided in a single container, no need for extra space.
Explore ARKQUA™ Containerized Reverse Osmosis Systems: In-Depth Product Videos
Emergency
Containerized RO Systems Available
ARKQUA™ Modular & Flexible Containerized Seawater Desalination RO System
As part of our Containerized Seawater Desalination RO Systems we offer ARKQUA™ Line of products, a modular and flexible packaged RO System build in a 40’HQ container suited to provide 1500m3d, 1000m3d or 500m3d. ARKQUA™ is a “plug and run” solution which minimize commissioning time and simplify operation. ARKQUA™ Remote monitoring provides the flexibility of managing, operate and monitor the system anywhere you are, with the convenience of take actions remotely when needed. ARKQUA™ modular options provide scalability to fit different capacity requirements.
All our containerized RO systems are fully tested before Shipment and Remote monitoring is included in all our systems.
- Thermal And Acoustic Insulation
- Multimedia Filtration System
- Well-Known And Proven Components
- Air Conditioning
- Power And Control Panel
- State-Of-The-Art Design
Applications in
Real Life
Disaster Relief
These containerized RO systems are a godsend during disaster relief, where clean water is the essence of survival. Natural calamities, which may include hurricanes, floods, earthquakes, and many more, destroy water infrastructures in communities, leaving them with no clean water. These containerized RO systems are fast, mobile solutions that can be set up in several hours and are capable of supplying safe drinking water; they are imperative in humanitarian aid. They are compact, plug-and-play systems that can be taken right into the affected areas, popped into place quickly, and started up to attend to immediate needs.
Mining Operations
Mining operations face challenges ranging from basic water scarcity to contamination. The containerized RO systems can treat the brackish or contaminated water to meet operational and environmental standards. They therefore enable mining companies to minimize their dependence on fresh water sources and be assured of sustainable water supplies for use in mineral processing and dust suppression. The robust construction from ADVANCEES means that containerized systems can also withstand hostile environments to perform reliably at remote mining sites.
Construction Sites
Temporary building sites require a water supply for several uses, including mixing concrete, cooling equipment, and hydrating workers. The containerized RO systems provide a flexible and portable water treatment solution to construction projects. This is because they are compact to fit into small spaces, while rapid deployment means that clean water is efficiently available from the very commencement of the construction. Productivity is maintained, with adherence to Health and Safety regulations, during the use of containerized systems for construction where there is no water infrastructure.
Compact and User-Friendly
Reverse Osmosis (RO) Systems
5/5
Rachel Haldims
Our company has been using the containerized RO system from ADVANCED Equipment and Services for the past six months, and it has exceeded our expectations. The setup was straightforward, and the system started producing high-quality potable water within a day. The ARKQUA™ remote monitoring feature is a game-changer, allowing us to manage the system efficiently from anywhere. Highly recommend!
Miami, FL
5/5
Mariel Senry
We needed an emergency water solution for our coastal resort, and the containerized RO system was the perfect fit. The thermal and acoustic insulation works wonders, keeping the operation quiet and stable. The air conditioning feature is a huge plus, ensuring the longevity of the system's components. Excellent product and service!
San Diego, CA
5/5
Mark T.
Our mining operation required a reliable water treatment solution, and the containerized RO system delivered. The multimedia filtration system effectively reduces suspended solids, and the power and control panel offers great flexibility. Installation was quick, and the support team was very responsive. My only suggestion is to improve the user manual for easier understanding.
Houston, TX
Benefits of Containerized RO Systems
Thermal And Acoustic Insulation
R19 thermal and acoustic insulation protects equipment from temperature fluctuations and prevent noise from system which can disturb the environment.
Multimedia Filtration System
Help to reduce suspended solid material on feed water. Operation can be automatic by electromechanical valves or manual.
Well-Known And Proven Components
All components in our reverse osmosis desalination container system have been proven in the field for years, easily available through worldwide distribution networks.
Air Conditioning
36000 BTU split air-conditioning, eliminates moisture from inside the reverse osmosis desalination container, protecting and extending life of electric and electronic components, facilitating maintenance, supervision and operation of the system.
Power And Control Panel
Includes human machine interface (HMI), programable logic controller (PLC), variable frequency driver (VFD), making systems suitable for different income voltages.
State-Of-The-Art Design
Easy and neat components layout that facilitate preventive and corrective maintenance. All components easy to reach and work with.
The Best Containerized RO
(Reverse Osmosis)
Systems
Containerized RO (Reverse Osmosis) Systems have changed the face of water treatment by providing compact, adaptable solutions for a wide range of applications.
Containerized RO Systems are self-contained units that house and run reverse osmosis water treatment equipment in a normal shipping container. These systems combine all necessary components, including pre-treatment, RO membranes, pumps, controllers, and post-treatment modules, into a small and portable package.
Raw water goes through pre-treatment operations such as filtering, sedimentation, and chemical dosing to remove suspended solids, organic debris, and pollutants that could foul or harm the RO membranes. The pre-treated water is compressed and forced through semi-permeable membranes to effectively remove dissolved salts, minerals, and other contaminants. Purified water, known as permeate, travels through the membranes, while concentrated brine is ejected. The permeate is post-treated to adjust pH levels, remineralize, and disinfect, ensuring that the water fulfills quality standards and is acceptable to drink or use in other applications.
Water Treatment
Solutions
Their portability and versatility are among the main benefits. These systems are easily transportable to remote or temporary places, ensuring access to clean water in areas where traditional infrastructure is inadequate or unfeasible. They are suited for use in emergency response scenarios, building sites, military operations, and temporary water purification.
When compared to traditional water treatment plants, containerized RO systems take up a lot less room. These systems reduce installation footprint by keeping all components within a tiny container, making them suited for installations in confined places or areas with limited real estate.
Containerized RO systems are intended for quick deployment and commissioning. These systems, which use pre-assembled components and standardized configurations, can be set up and operational in a fraction of the time that traditional water treatment facilities require. This mobility is useful in emergencies or when time is critical.
Containerized RO Systems are critical to disaster relief operations, providing emergency water purification solutions during natural catastrophes such as hurricanes, floods, and earthquakes. These devices can be rapidly deployed to damaged locations, providing safe drinking water to displaced people and humanitarian workers.
Containerized RO Systems provide a sustainable water treatment solution in distant or off-grid populations without access to reliable municipal water supply. These systems can be placed in isolated villages, mining camps, or agricultural outposts to ensure locals have access to safe and dependable drinking water.
Containerized RO Systems are used in a variety of industrial and commercial settings, including mining operations, oil and gas exploration sites, resorts, and remote building projects. These systems are a low-cost way to treat water for process, cooling, and potable water needs, making them ideal for enterprises in remote or difficult locations.
- Truly Containerized System
- Easy to Transport
- Access Remote Locations
- Remote Control Monitoring
- Start in A Day
- Lowest Power and Consumables Consuption
Frequently Asked Questions (FAQs)
What are Containerized Reverse Osmosis (RO) Systems?
Containerized RO Systems are self-contained units that house and run reverse osmosis water treatment equipment within a standard shipping container. These systems combine all necessary components, including pre-treatment, RO membranes, pumps, controllers, and post-treatment modules, into a compact and portable package.
How quickly can the Containerized RO Systems be operational?
Our containerized RO systems are designed for quick deployment and can be operational within a day of delivery. The “plug and run” design minimizes commissioning time and simplifies the setup process.
What capacities do ARKQUA™ Containerized Seawater Desalination RO Systems offer?
The ARKQUA™ line offers modular and flexible packaged RO systems built in a 40’HQ container. They are available in capacities of 1500m3d, 1000m3d, or 500m3d, providing scalable solutions to fit different requirements.
Can the system be monitored remotely?
Yes, all our containerized RO systems come with remote monitoring capabilities. This feature allows you to manage, operate, and monitor the system from anywhere, enabling remote actions when needed.
What kind of insulation is used in the containerized RO systems?
Our systems use R19 thermal and acoustic insulation to protect equipment from temperature fluctuations and prevent noise from disturbing the environment.
