PROJECT DESCRIPTION SOLAR BRACKISH WATER REVERSE OSMOSIS SYSTEM - 50,000 GPD
INDUSTRIAL - ICE CREAM FACTORY
Supplying 70% of the icecream of an island in the caribbean. System provides water to icecream production.

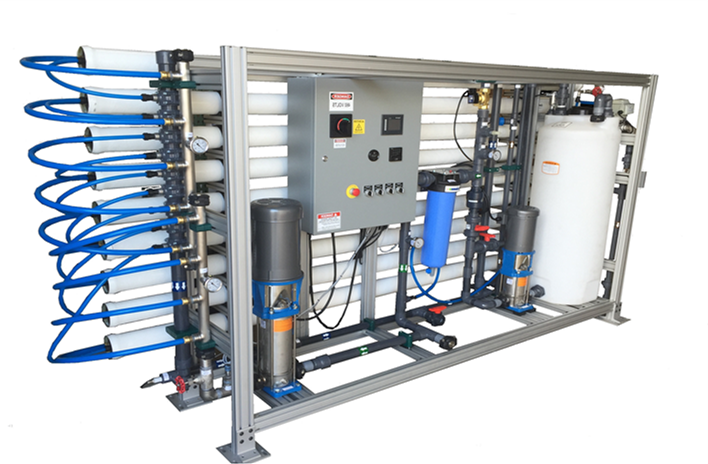

Advanced Equipment and Services has successfully completed commissioning and start-up of a state of the art 30,000 US GPD reverse osmosis system. This system has been design to work at 85% recovery rate with a very low working pressure. The final user is large a multinational company factory located in a small island were water and power are limited.
This system works 100% automatically with a permeate flushing system that will extend membrane operational life expand. Customer maintenance manager Luis Pena comment’s ” This system has been running with a very low operational cost and minimum maintenance we are very happy we got the right equipment from the right company”
Since the water is so scarce, the 15% reject flow coming out of the reverse osmosis system is used for flushing toilets in the factory general quarters, making this system a truly zero discharge equipment.
main features
- Inlet actuator valve
- 5 Micron FRP cartridge filter
- 5 HP multistage centrifugal High Pressure Pump
- Motor variable frequency driver (VFD)
- Low- and high-pressure protection
- High recovery system (85%) with low working pressure
- Clean in place and flush system integrated
- NEMA 12 enclosure
- PLC controller
- 15” HMI for operator interface
- Product and reject flowmeter
- Conductivity monitor
- Sample valves
ANCILLARY EQUIPMENT
- High recovery system up to 85%
- Permeate water flushing for optimal water quality
- Two (2) multimedia FRP filters 28” diam. x 62” high (pre-treatment)
- Antiscalant injection system (pre-treatment)
