PROJECT DESCRIPTION

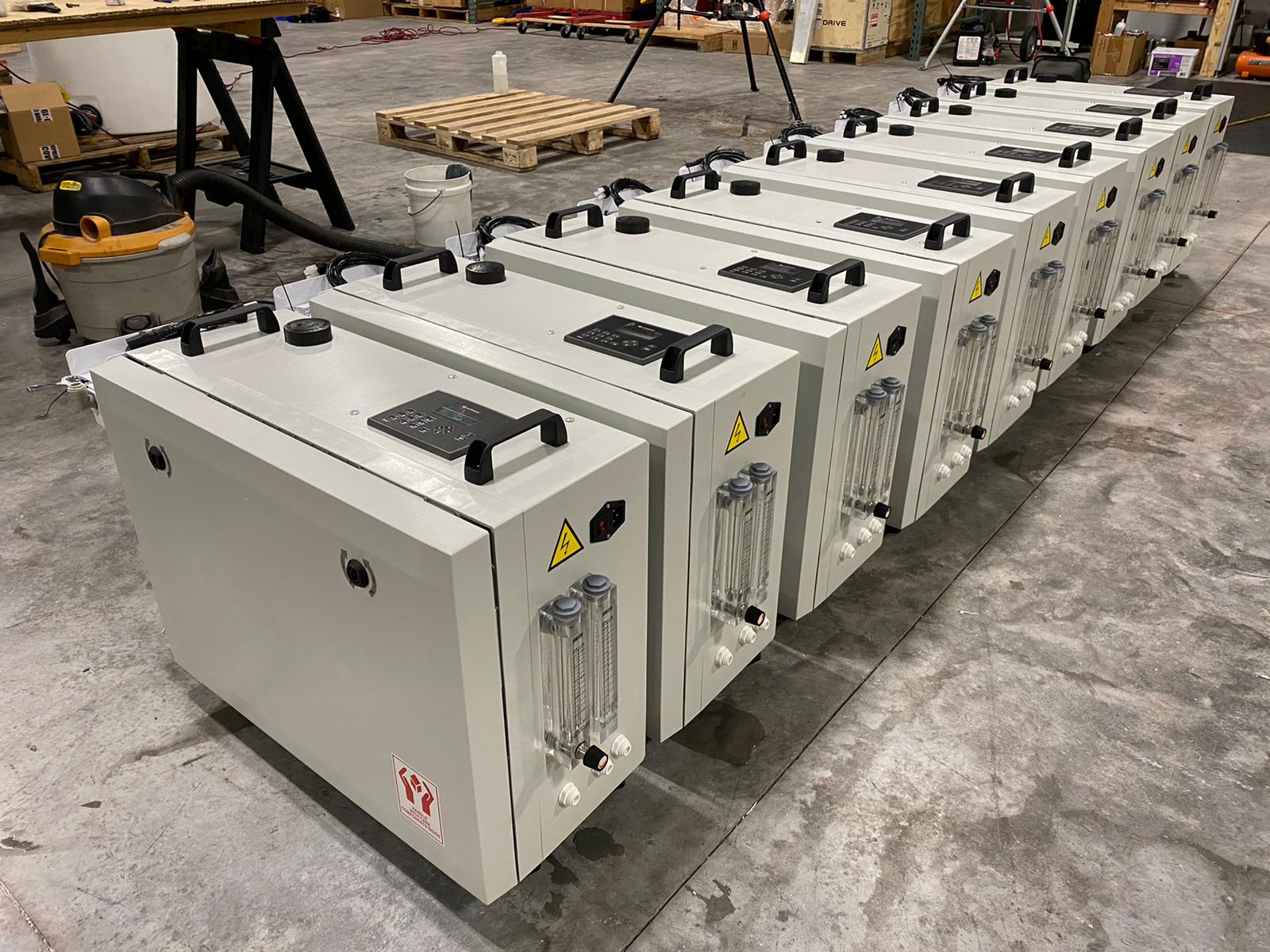

MOBILE RO DIALYSIS WATER TREATMENT SYSTEMS - 576 GPD
Easy to transport Mobile RO Dialysis Water treatment Unit provides the required flexibility for integration into hospital and home needs. The system it’s set to produce 0.4 US Gal/minute of product water at 20% recovery.
Water pre-treatment included. It consists of sediment and activated carbon filters to remove suspended solids and residual chlorine from incoming feed water.
| DESIGN PARAMETERS | |
|---|---|
|
WATER SOURCE |
Municipality, chlorine free |
|
TEMPERATURE |
20-28 °C |
|
FEED TDS |
<500 ppm |
|
PRODUCT TDS |
<10 ppm |
|
FEED FLOW |
2.0 GPM |
|
PRODUCT FLOW |
0.4 GPM |
|
OPERATING PRESSURE |
30-60 PSI |
|
RECOVERY RATE |
20% |
main features
- Monitoring screen helps to assure water product meets the require standard before and during dialysis operation
- Emergency protection, in case of high salinity feed water or low-pressure system will react accordingly and provide message to operator
- Provides a permeate capacity of 90 l/h
- Automatic rinse cycles, helping to preserve water quality under control
- Easy interphase with operator facilitates system operation
- Water pretreatment included
- Feed and permeate Water Conductivity are display for customer peace of mind making sure water meets quality standard
- Pressure switch protects system in case of unexpected shutoff feed water supply
PHYSICAL DATA & DIMENSIONS :
- Dimensions: 36" x 24" x 12"
- Weight: 65 lb.
