Description

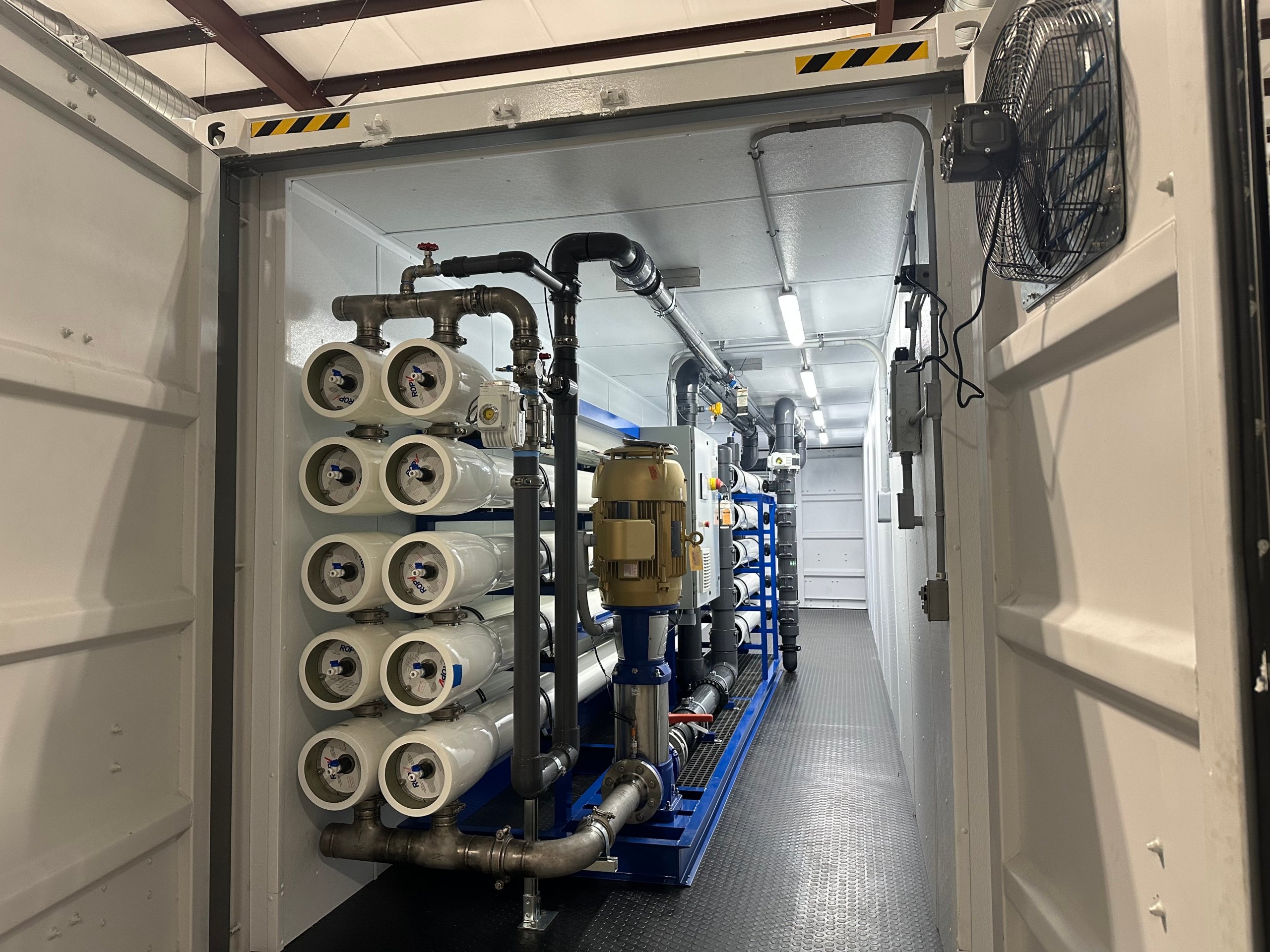

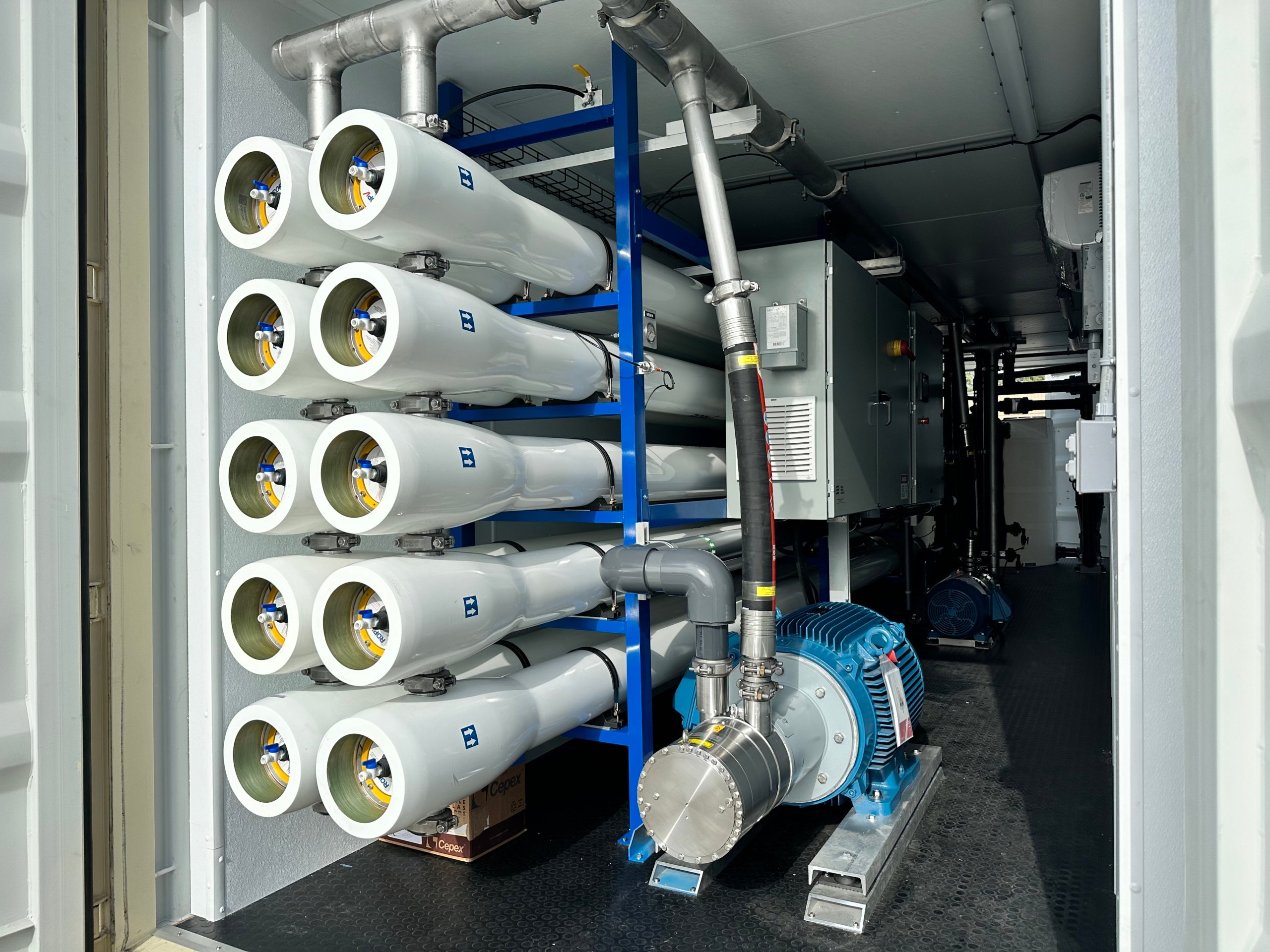

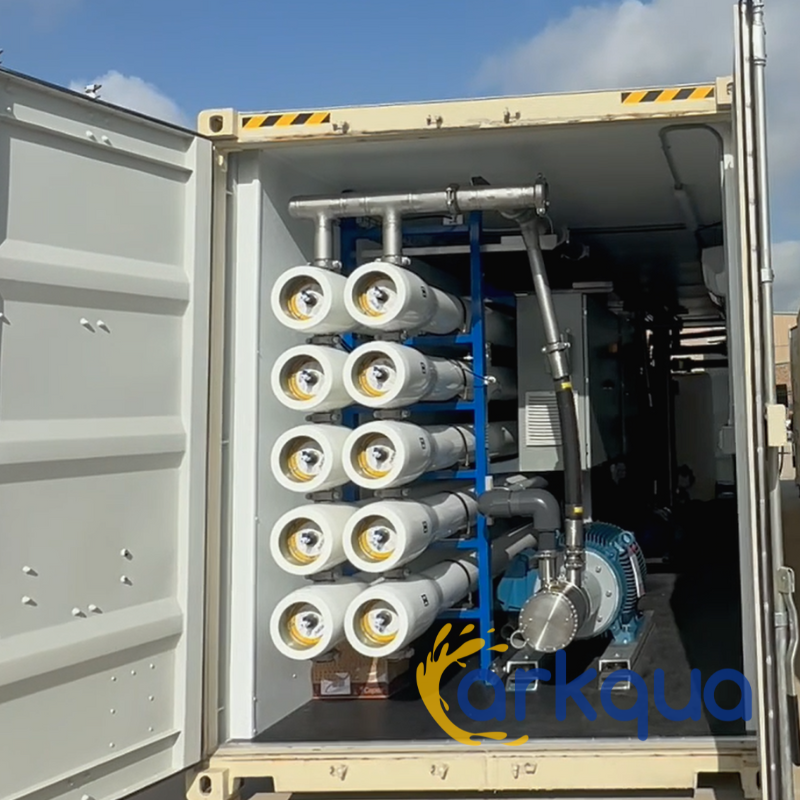

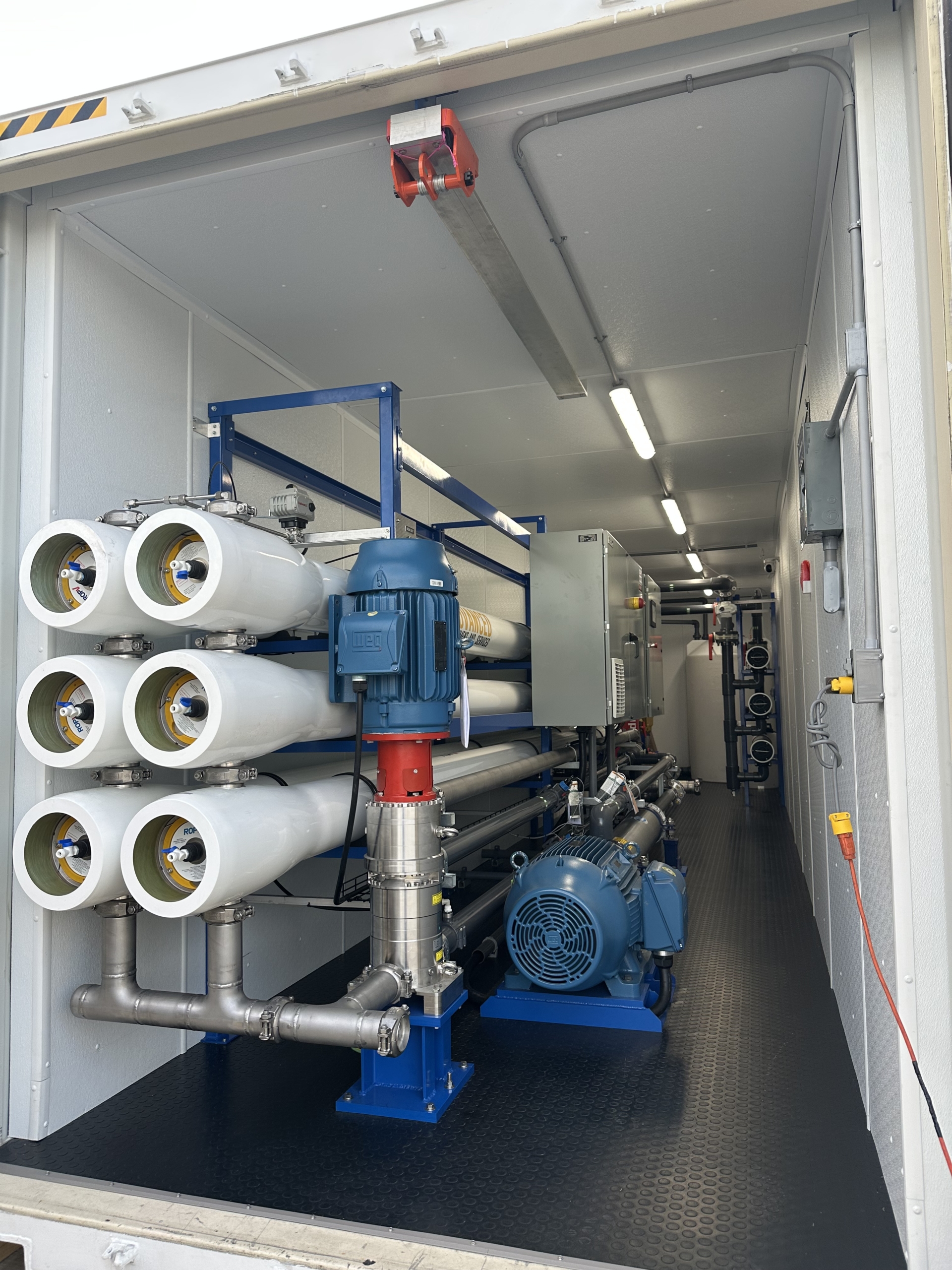

ARKQUA Containerized Seawater Desalination RO System
MODEL: ARKQUA1000
ARKQUA® systems are a pre-designed and pre-engineered “plug and run” truly containerized seawater desalination solution, 100% modular, which provides the flexibility and scalability to growth your plant capacity and footprint step by step based on your unique water needs.
Our ARKQUA1000 system is designed to produce 946 M3D of potable water. ARKQUA® Systems provide all what you need on a single container, RO, CIP flushing and MMF are also included, no need for extra space. ARKQUA containerized seawater desalination systems are designed to provide fresh water for Municipalities, hotels, resorts, Communities in expansion, as well as to the industrial and aquaculture & agriculture industries. These models are the perfect fit for remote locations that require reliable and continuous operation, as the interaction for operation is minimal and our feature of Remote monitoring and control enable you to manage and monitor your plant from anywhere you are, being fully informed and ready to act when a problem occurs.
Remote monitoring is included in all ADVANCEES Systems. Containerized, Solar or Hybrid option is available for all our systems.
Although this system corresponds to standard engineering and design series, ADVANCEES is able to customize your unit to cover your water or environmental particular need.
ARKQUA Systems capacities available:
| MODEL SKU | Output | Recovery | Pump |
| M3/D | % | HP | |
| ARKQUA100 | 100.0 | 45 | 30 |
| ARKQUA150 | 150.0 | 45 | 40 |
| ARKQUA200 | 200.0 | 45 | 50 |
| ARKQUA500 | 500.0 | 45 | 125 |
| ARKQUA1000 | 946.0 | 45 | 175 |
| ARKQUA1500 | 1500.0 | 45 | 200 |
| ARKQUA2000 | 2000.0 | 45 | 300 |
CLICK HERE FOR ARKQUA1000 DATA SHEET
Product Specifications for ARKQUA1000
| PERFORMANCE | SPECIFICATIONS | ||||||||||||
| Model-SKU | Output | Product | Feed | Reject | Recovery | Membranes | Pump HP | Weight | Connections Size (Inch) | ||||
| GPD | M3/D | GPM | GPM | GPM | % | Qty | Size | lbs. | Feed – Inlet | Product – Permeate | Reject – Brine | ||
| ARKQUA1000 | 249957 | 946.0 | 173.6 | 385.7 | 212.2 | 45 | 60 | 8″ | 175 | 9900 | 6″ | 4″ | 4″ |
Standard Features:
- Remote control monitoring included in all our systems.
- Membrane flux rate below 10 GFD to extend membrane life and minimize fouling.
- Reciprocating pumps with nickel aluminum bronze fluid end; sized at no more than 65% of the maximum rated RPM.
- Suction and discharge pulsation dampeners (non-corrosive) or a non-pulsating type pump (depending on capacity)
- Dual or triplex multi-media filtration sized for manual or automatic backwash of one while continuing system operation.
- Cartridge filtration
- Automatic inlet feed valve
- Automatic feed water flush on startup
- Automatic product water flush on shutdown
- Conductivity monitor/controller driven product diverter valve to dump unacceptable water
- Permanently piped membrane cleaning system.
- PLC driven control panel
- Energy recovery system (Turbo or Pressure exchangers) based on customer need
- Passivation treatment of all welded SS316L, Super Duplex S.S. piping
- 15″ HMI for operator interface
- Digital flow meter and pressure transducers
- Nema 4X electrical equipment
- Remote control monitoring
- TEFC electric motors
- Compact footprint
Deployment Case Studies
Coastal Municipality Expansion – Southeast Asia
A rapidly growing coastal city needed a scalable, long-term desalination solution to meet rising population demands. The ARKQUA1000 was engineered with modular capacity to integrate seamlessly with future plant expansions. Delivered in phases, the system now produces 946 M3D of potable water, ensuring a sustainable supply for more than 60,000 residents.
Industrial Processing Facility – Middle East
A chemical manufacturing plant faced increasing salinity levels in its existing water source. The ARKQUA1000 was deployed to provide high-volume, consistent-quality water for process use. Its advanced pre-treatment and energy-efficient RO membranes reduced operating costs and safeguarded equipment from scaling and corrosion.
Island Resort Development – Caribbean
To support a luxury resort’s expansion, the ARKQUA1000 was custom-built to deliver a reliable source of drinking water while blending seamlessly with the resort’s infrastructure. Its containerized design allowed quick installation in a location with limited construction access.
RO Water Treatment Plant for the Fishing Industry – Peru
A leading fishing industry company implemented a reverse osmosis (RO) water treatment plant to enhance its processing operations. The facility, strategically installed on-site, produces high-quality potable water used for cleaning freshly caught fish and for ice production in storage.
With this system, seawater is efficiently desalinated, ensuring a reliable supply of pure water that meets strict hygiene standards. The clean water is chilled and stored as ice, preserving fish freshness from the moment of catch through storage and transportation.
The plant has improved operational efficiency, reduced dependence on external water sources, and ensured compliance with food safety regulations, ultimately supporting product quality and extending shelf life for export markets.
Coastal High-Scale Community with Integrated Golf Course Facilities – Bahamas
A high-capacity containerized reverse osmosis (RO) desalination plant with a production capacity of 946 m³/day was installed in the Bahamas to supply potable water for a large community and an adjacent golf course. The system, fully pre-assembled inside a container, ensures quick deployment and minimal on-site construction. Designed for efficiency and durability in coastal environments, it delivers a constant supply of fresh water from seawater, supporting both residential needs and the high irrigation demands of the golf facilities.
Availability and Deployment Options
- The ARKQUA1000 is built to order, ensuring each system is tailored to your specific project needs.
- If you require a seawater RO solution immediately, our ARKQUA200 and ARKQUA500 models are available for immediate deployment and can be rented or leased.
