Description

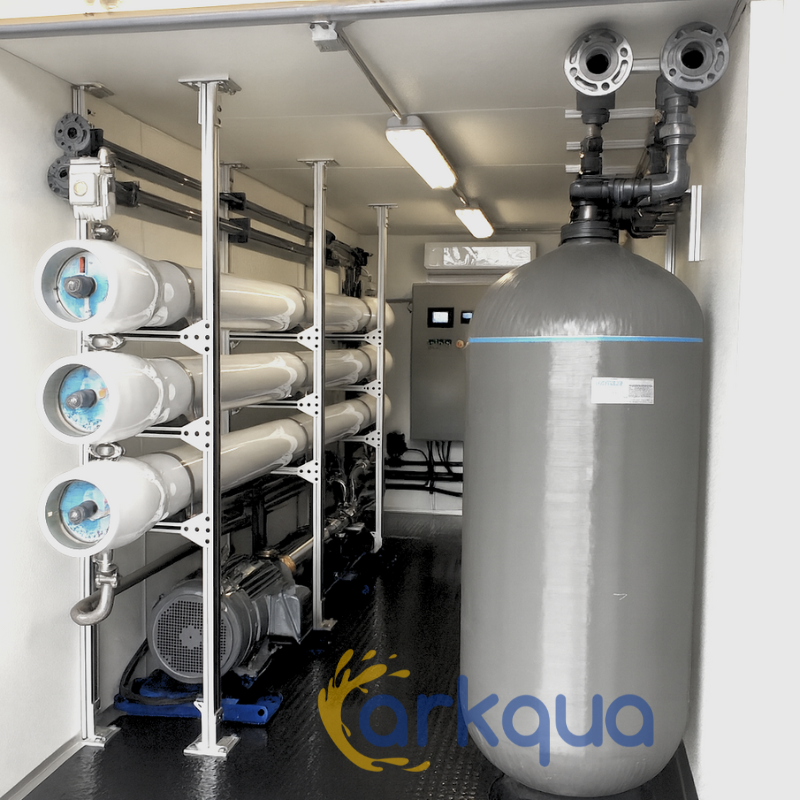

ARKQUA Containerized Seawater RO Desalination Systems
MODEL: ARKQUA200
ARKQUA® systems are a pre-designed and pre-engineered “plug and run” truly containerized seawater desalination solution, 100% modular, which provides the flexibility and scalability to growth your plant capacity and footprint step by step based on your unique water needs.
Our ARKQUA200 system is designed to produce 200 M3D of potable water. ARKQUA® Systems provide all what you need on a single container, RO, CIP flushing and MMF are also included, no need for extra space. ARKQUA containerized seawater desalination systems are designed to provide fresh water for Municipalities, hotels, resorts, Communities in expansion, as well as to the industrial and aquaculture & agriculture industries. These models are the perfect fit for remote locations that require reliable and continuous operation, as the interaction for operation is minimal and our feature of Remote monitoring and control enable you to manage and monitor your plant from anywhere you are, being fully informed and ready to act when a problem occurs.
Remote monitoring is included in all ADVANCEES Systems. Containerized, Solar or Hybrid option is available for all our systems.
Although this system corresponds to standard engineering and design series, ADVANCEES is able to customize your unit to cover your water or environmental particular need.
ARKQUA Systems capacities available:
| SKU | Output M3D | Power KW | Recovery |
| ARKQUA200 | 200 m3d | 56 kw | 45% |
| ARKQUA500 | 500 m3d | 74 kw | 45% |
| ARKQUA1000 | 946 m3d | 112 kw | 45% |
| ARKQUA1500 | 1500 m3d | 150 kw | 45% |
Product Specifications for ARKQUA200
| PERFORMANCE | SPECIFICATIONS | ||||||||||
| Output | Feed | Product | Reject | Recovery | Membranes | Pump | Connections Size (Inch) | ||||
| M3/D | GPD | GPM | GPM | GPM | % | Qty | Size | HP | Feed | Product | Reject |
| 200 | 52000 | 36.1 | 97.6 | 61.5 | 45 | 12 | 8×40 | 40 | 3” | 2” | 2” |
Standard Features:
- Remote control monitoring included in all our systems.
- Membrane flux rate below 10 GFD to extend membrane life and minimize fouling.
- Reciprocating pumps with nickel aluminum bronze fluid end; sized at no more than 65% of the maximum rated RPM.
- Suction and discharge pulsation dampeners (non-corrosive) or a non-pulsating type pump (depending on capacity)
- Dual or triplex multi-media filtration sized for manual or automatic backwash of one while continuing system operation.
- Cartridge filtration
- Automatic inlet feed valve
- Automatic feed water flush on startup
- Automatic product water flush on shutdown
- Conductivity monitor/controller driven product diverter valve to dump unacceptable water
- Permanently piped membrane cleaning system.
- PLC driven control panel
- Energy recovery system (Turbo or Pressure exchangers) based on customer need
- Passivation treatment of all welded SS316L, Super Duplex S.S. piping
- 15″ HMI for operator interface
- Digital flow meter and pressure transducers
- Nema 4X electrical equipment
- Remote control monitoring
- TEFC electric motors
- Compact footprint
