Systems available for quick delivery!!

100,000 US GPD SWRO

The following systems are available for quick delivery at our facility in Coconut Creek, Florida, USA.



Desalination system 200,000 US GPD system

Desalination system 200,000 US GPD system

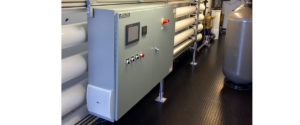

Inside container – typical















  • One (1) Desalination system Turbo Charged double 2 x 100,000 US GPD in container – total capacity 200,000 US GPD
  • One (1) Desalination system Turbo Charged double 2 x   75,000  US GPD in container – total capacity 150,000 US GPD
  • Two (2) Desalination system Turbo Charged single   1 x 100,000 US GPD in container – total capacity 100,000 US GPD
  • Two (2) Desalination system Turbo Charged single   1 x   75,000  US GPD in container – total capacity 75,000 US GPD
  • One (1) Desalination system Turbo Charged single   1 x   50,000  US GPD in container – total capacity 50,000 US GPD
  • One (1) Desalination system Turbo Charged single   1 x   35,000  US GPD in container – total capacity 35,000 US GPD

Contact us for a detail proposal on these items



Main features common for all systems above:

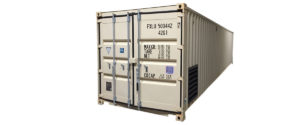

– 40 or 20′ ISO container – Sound barrier and R11 thermal insulation.

– Control and Power panel including: PLC, HMI, VFDs, Program.

  • System ready to be power by solar panels or hybrid mode ( solar – grid ) if required

– Instrumentation: Conductivity, Flow meters, Pressure gauges, Pressure switches adjustable .

– Pressure vessel  PV 1000 PSI with side ports x 6 or 4 elements.

– Membranes included: SWC6LD or similar.

– High pressure RO pump:

  • FEDCO or similar pump with  TEFC motor 480/380V – 50/60 Hz – 3P.

– Energy recovery device: Turbo charger.

– Cleaning in Place and Flushing system:

  • Grundfos or Goulds 316 pump with  TEFC motor
  • Polypropylene  tank Gallons
  • Connection and automatic operation.

– Structural frame:

  • Anodized aluminum marine grade for longer corrosion resistance.

– Operation:

  • Automatic.

– Alarms protections: all shall be indicated with in the HMI display

  • Low pump suction pressure
  • High pump pressure discharge
  • Permeate water quality
  • Low permeate flow
  • High permeate flow
  • Low reject flow
  • Low/high voltage
  • Phase protectionPum
  • High membrane feed pressure
  • Chemical tank protection level
  • Flush storage tank level protection



For inquiries or to request additional information contact us at sales@advancees.com
